Calibrated crane weighing system

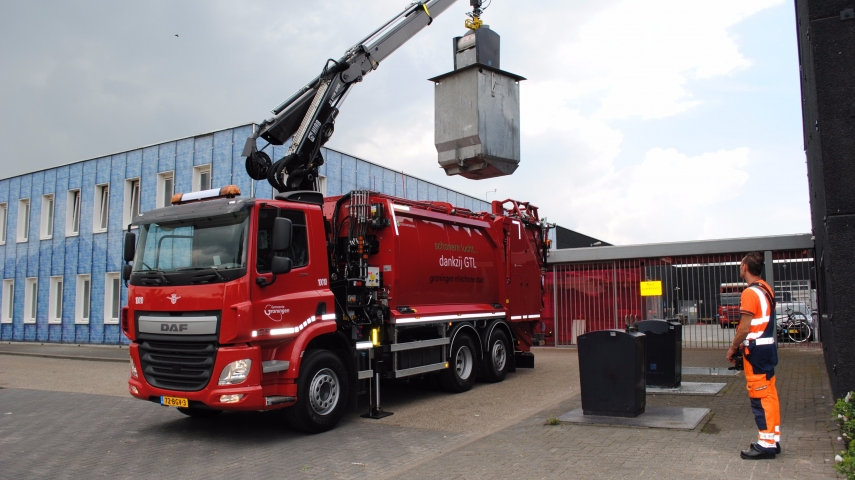

A calibrated crane weighing system is used for weighing under and aboveground containers. The advantage of this crane weighing system is that it wirelessly transmits the weight to the weighing computer. Broken cables over the crane boom belong to the past. The system consists out of a robust compact weighing block which is mounted on the boom of the crane.


HOW DOES IT WORK?

You enter the customer or location code on arrival. During lifting of the container, the system determines the weight of the full container. After the containers is amptied the weight of the container is determined again. The net weight of the container is based on the difference between these two weighing’s. The weighing block wirelessly transmits the weight to the weighing computer. Transfer of the weighing data is possible in several ways, such as via a printer, on-board computer and/or internet.


THE SERVICE

Operation the weighing system is done by an external controlbox, via the remote control of the crane or through the weighing computer. In addition to manual operation of the crane, this process can also be fully automated. The crane then signals when the first and second weighing can be performed. As a result, the driver is distracted as little as possible from his work, the quantity is enlarged and the reliability of the weighing data is ensured.


DATA PROCESSING

In this way the data is shared quickly and efficiently. The organization can analyze its business processes on the basis of these data, streamline it if necessary, optimize routes and distribute costs proportionally to the interested party on the basis of weight.

Besides weighing the weighing computer can also process routes or assignments on the weighing computer. The management of this data can be done via your own back office package as well as from the web- basedprogram www.kilogram.nl


How may we be of service?


Contact us

TECHNICAL DATA

  • Weighing capacity from 1,000 kg to 5,000 kg with a classification of 2 kg or 5 kg.
  • Standard equipped with a printer.
  • European calibrated in class III or IV (applicable for recyclable materials and waste).


OPTIONAL

  • Confirm weighing via the radio control of the crane.
  • Fully automatic crane weighing
  • Links with your network, on-board computer, GPS
  • Multiple options negotiable


Downloads

  1. Loading crane weighing system
